SPECIFICATIONS

Brand Name: POWER TRAIN

Type: Mid Tower

Form Factor: ATX

Form Factor: MicroATX

Form Factor: Mini-ITX

RGB Support: NO RGB

Case Weight: 4

Material: Tempered Glass

Material: others

Origin: Mainland China

Power Model: ATX

Case Size: 349*185*295mm

Model Number: X100

With Side Panel Window: YES

Chassis Type: Desktops

Internal 3.5" Drive Bays: 1

Application: Desktop

Series: X100

120mm Fan Options: 5

Power Supply Mounted: Top

Max GPU Length: 335

With Fan: no

Max CPU Cooler Height: 162

Max PSU Length: 150

Front Ports: Key switch, USB3.0 * 1, Type-C optional

Expansion Slots: 4

Internal 2.5" Drive Bays: 2

With Power Supply: no

Attention: For graphics cards with a length exceeding 260mm, it is recommended to use an SFX power supply.

Product parameters

Product name: X100

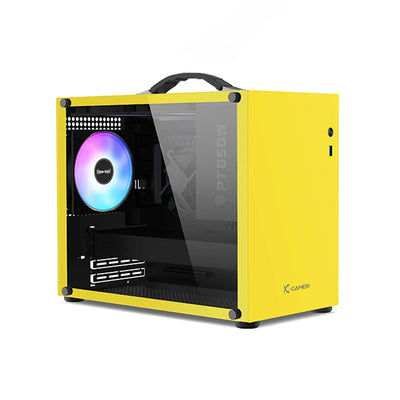

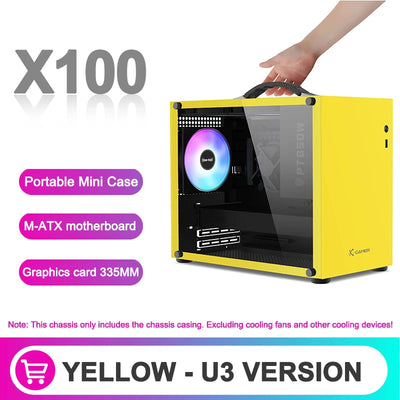

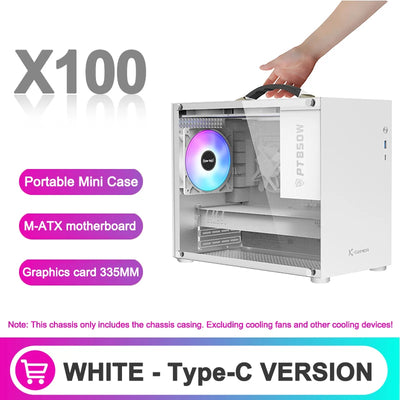

Cabinet color: black, white, yellow

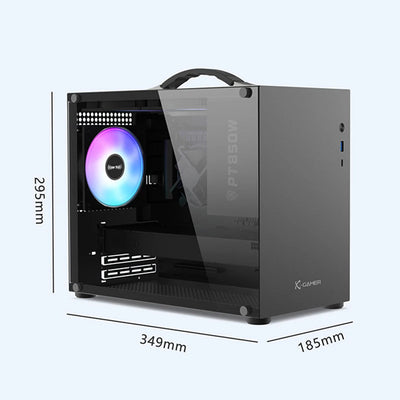

Product size: 349 * 185 * 295mm
Material thickness: SPCC (baking paint) 1.0mm thickened

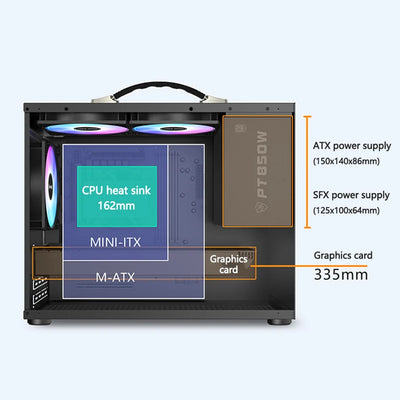

Power length:
ATX power supply (150x140x86mm)
SFX power supply (125x100x64mm)
CPU heat sink: height limit 162mm
Graphics card length limit: 335mm
Applicable motherboard: Micro ATX/Mini ITX
Panel interface: On/Off key, USB3.0 * 1, Type-C optional
Expansion drive: 3.5 "HDD * 1,2.5" SSD * 2 or 3.5 "HDD * 1,2.5" SSD * 5 depending on the length of the graphics card
PCI slots: 4

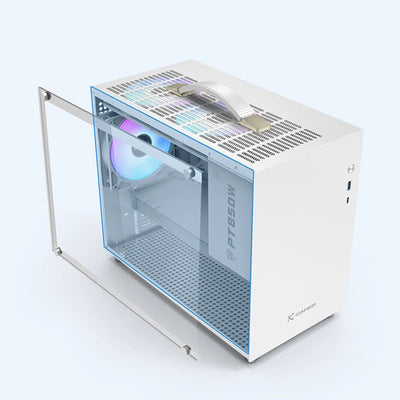

Tempered glass: left side
Heat dissipation system:
Top: 12CM fan * 2（optional）
Rear: 12CM fan * 1（optional）
Bottom: 12CM fan * 2 (optional)
*The case contains only the case shell, not the case fan and cooling equipment and computer hardware!

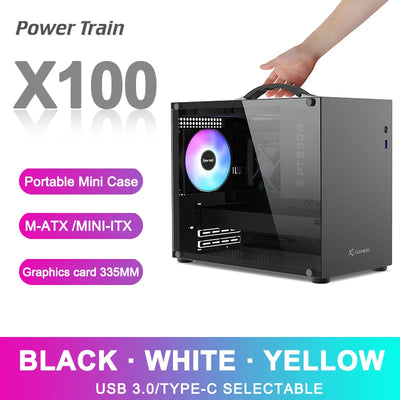

X100 M-ATX Portable Computer Case MINI-ITX ATX Motherboard Power Supply Support U3 Type-C Desktop MINI Small Chassis
