SPECIFICATIONS

Model Number: i9x

Size: 1.8"

Package: Yes

External Interface: USB

Case Material: aluminum

Internal Interface: NVME/SATA

Supporting Hard Drive Capacity: 4TB

New Upgrade Function

1. 3 clicks to reconnect the drive (no need to disconnect the cable)

2. 5 clicks to turn on write protection (exit requires unplugging the cable again)

3. Multi-color LEDs

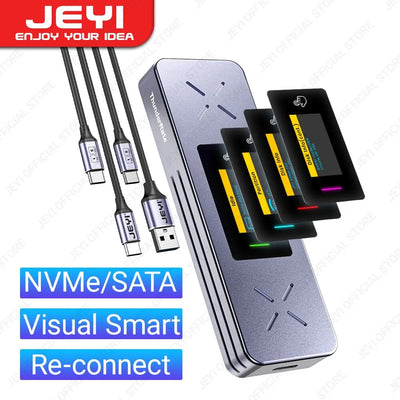

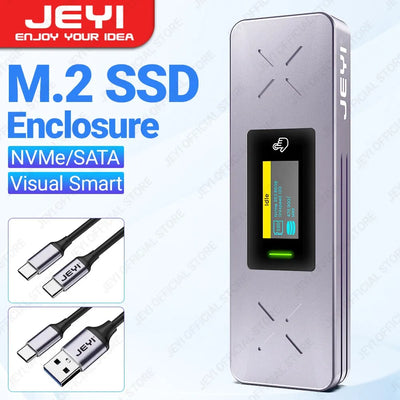

JEYI i9X Display Visual Dual M.2 Protocol SSD Enclosure

1. Built-in RTL9210B dual protocol 10G high-speed master control theoretical read/write speed up to 1000M. Support both NVMe protocol and SATA protocol.

2. Supports TRIM, ASPM, UASP acceleration, and sleep mode

3. Plug-and-play, allowing data transmission across multiple devices such as desktops, laptops, cell phones, tablets, cameras, etc. at high speed across platforms and scenes

4. Compact body with good feel Length only 103mm Width only 32.5mm Thickness only 11.5mm

5. Multi-fin on all sides to support heat dissipation, so that the disk is always running at normal temperature, and always take care of the disk.

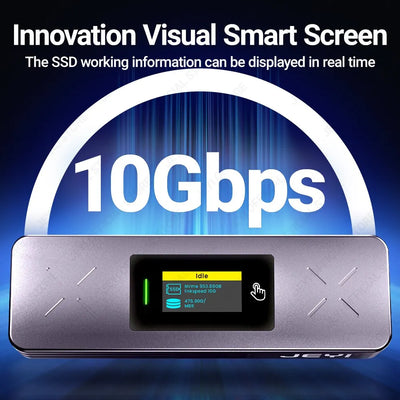

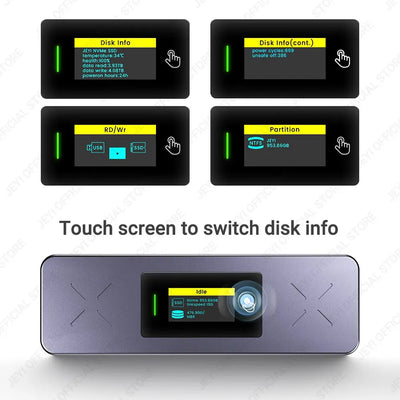

It Can Also Display

Conncecting USB 2.0 - 5 seconds Orange

Conncecting USB 3.0 5G - 5 seconds Green

Conncecting USB 3.2 10G - 5 seconds Purple

Write-protected - remains in a static blue state

Reading - the light flashes rapidly in succession

Sleep Mode - multi-color breathing light effect

After Safe Ejection - in stand by mode - breathing light effect for "USB 2.0 Orange" "USB3.0 Blue" "USB3.1 Purple"

1G File Transfer in 1 Second

NVMe enclosure adopts USB 3.1 Gen 2 transfer speed up to 10Gbps

NOTE: SATA SSD ONLY SUPPORT 6Gbps (600Mb/s Max)

How to set write protection (https://youtu.be/aUfxHxRKM5E)

Enter write protect: touch the screen 5 times, then re-plug the cable to enter protect mode (red light to long blue)

Exit write protect: touch the screen 5 times, then re-plug the cable exit protect mode (long blue light to red light)

Note: Write protection with memory function, so as long as you don't exit the write protect function, it will remain in protected mode

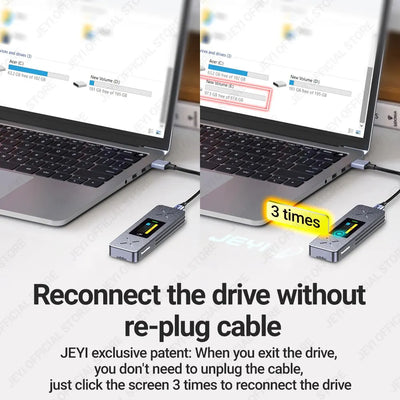

Reconnect the drive without re-plug cable

JEYI exclusive patent: When you exit the drive, you don't need to unplug the cable, just click the screen 3 times to reconnect the drive.

1 minutes into sleep mode to save energy

If the SSD case goes into sleep mode, you need to do a read action on the drive to exit sleep mode.

Note: Sleep time can be modified by firmware

Efficient Cooling Design

All-aluminum body with multiple grooves to effectively increase the cooling effect

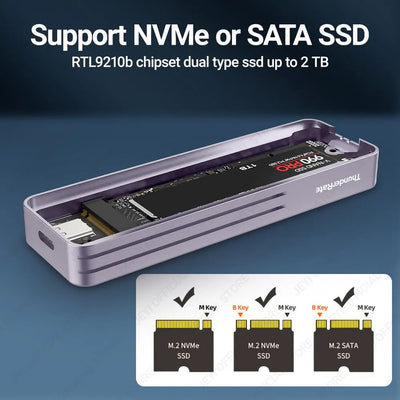

Support Both NVMe and SATA SSD

Supports both M.2 NVMe (M-Key,B&M-Key) and M.2 SATA(B&M-Key)

RTL9210B Dual M.2 Protocols

The RTL9210B-CG is a USB bridge that combines a USB device with both a PCI Express (PCle) controller and a SATA controller

Supports TRIM, ASPM, UASP Acceleration, and Sleep Mode

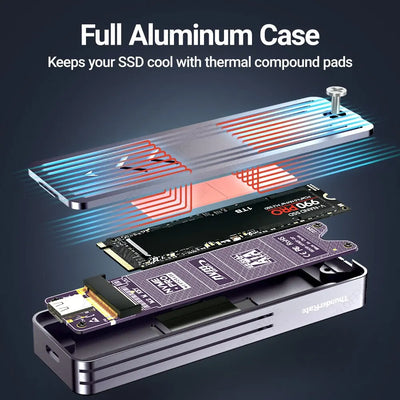

Full Aluminum Case

Keeps your SSD cool with thermal compound pads

Two Cables Inside (Gift)

1pcs TYPE C To C USB 3.2 Gen2 Cable
1Pcs TYPE A To C USB 3.2 Gen2 Cabl

Package Contents

1pc NVMe/SATA SSD Enclosure
1Pc Screwdriver
1Pc C to C Cable
1Pc A to C Cable
10Pcs Thernal Pads

Why Choose JEYI SSD Enclosure?

JEYI insists on using the high cost superconducting thermal conductivity pad and all-aluminum heat dissipation method to prevent the disk from being "baked" in the enclosure and reducing the life of the disk.

JEYI i9X can read and write for a long time with high intensity, which is suitable for professional-level uninterrupted applications. Can run Win To Go, VmWare virtual machine for a long time, large games, large 8K RAW video editing and other high-intensity professional applications

Visual Smart M.2 NVMe / SATA SSD Enclosure, USB 3.2 Gen 2 10Gbps, External M2 Adapter Case Support M-Key B +M Key UASP Trim
