SPECIFICATIONS

Brand Name: TOPLOONG

Type: Vertical

Form Factor: Mini-ITX

RGB Support: NO RGB

Case Weight: 4

Material: STEEL

Origin: Mainland China

Power Model: ATX

Case Size: 262*187*180MM

Model Number: NAS chassis

With Side Panel Window: no

Chassis Type: Server

Internal 3.5" Drive Bays: 4

Application: Server

Hot-Swap Drive Bays: 4

140mm Fan Options: 0

120mm Fan Options: 0

Power Supply Mounted: Top

With Fan: YES

Max CPU Cooler Height: 35

Max PSU Length: 150

Front Ports: USB

Expansion Slots: 0

Internal 2.5" Drive Bays: 0

Style: CASE+Fan

With Power Supply: no

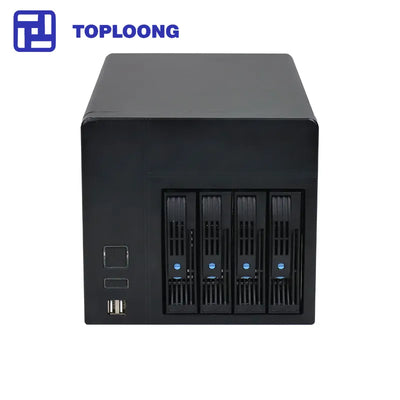

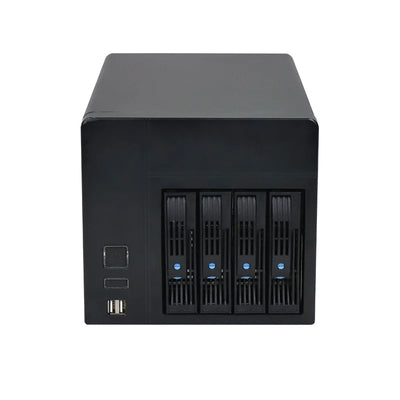

hot sell home storage hot-swap NAS Storage Server chassis IPFS Miner 4 drive bays 6GB sata backplane support mini-itx motherboard empty case

Product name:NAS chassis

Dimension: 262MM(D)*187MM(W)*180MM(H)

Material: Environmental resistant fingerprint 1.0MM SGCC

motherboard size: support MINI-ITX motherboard 6.7’’*6.7’’(170mm*170mm), The height of motherboard CPU fan is below 3.5cm

Suitable PSU: support Flex 1U power supply(150MM*80MM*40.5MM)

Backplane: 6GB SATA

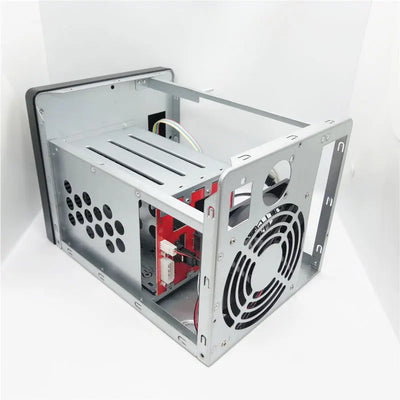

Cooling fan:1*12025 fan

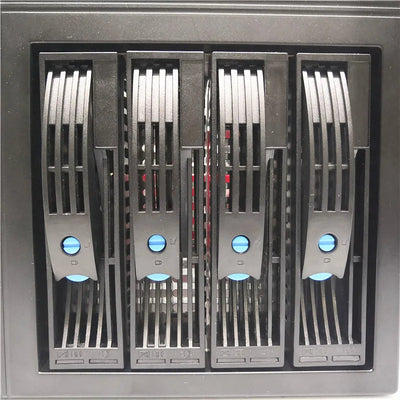

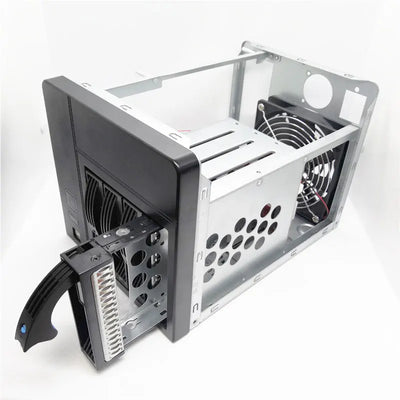

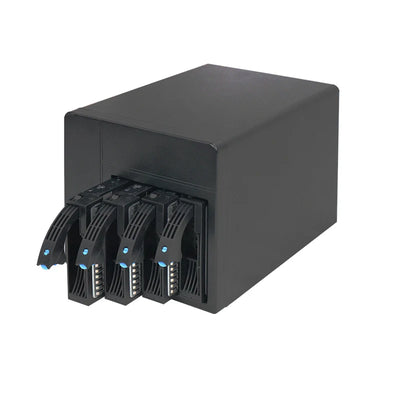

Drive bays:4 x 3.5" HDD bays(Compatible with 2.5 "HDD bays)

System control: Power LED,Reset,Power SW,HDD LED

USB ports: 2*USB 2.0 ports

Application:Enterprise Internet applications,personal storage.

Internet applications(wvb.mail,File server,Database,Integration,Online game server.HTPC, File server, network storage

Notice:It is just an empty case,no power supply,no motherboard,no HDD!!!

can't support pci cards and Raid cards!!!

option 1:https://www.aliexpress.com/item/4000059550050.html?spm=5261.ProductManageOnline.0.0.57874edflDgOKf

option 2:https://www.aliexpress.com/item/4000819735669.html?spm=5261.ProductManageOnline.0.0.57874edflDgOKf

option 3:https://www.aliexpress.com/item/4001149363605.html?spm=5261.ProductManageOnline.0.0.57874edflDgOKf

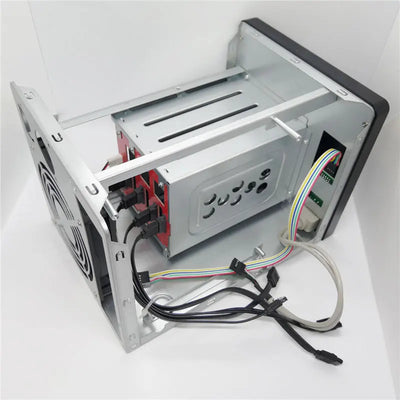

As shown below, the green backplane and the red backplane are shipped randomly：

home storage hot-swap NAS Storage Server chassis IPFS Miner 4 drive bays 6GB sata backplane support mini-itx motherboard black
