SPECIFICATIONS

Content: AUDIO

Origin: Mainland China

High Definition Support: None

Interface: TYPE-C

Wireless Type: bluetooth

WIFI Standard: None

Support Memory Card: No

Certification: none

Package: Yes

Support AAC: Yes

Support Apt-x: Yes

Sound Track: Double

Bluetooth version: V5.0

Note: before purchasing, please check whether the mobile device can support LDAC?

Does the decoder support 24bit, 96k?

The LDAC function results of some mobile phones are as follows:

Not supported: iPhone, low version Android phone, etc.

If you don't support LDAC, other protocols can be used. It doesn't affect normal use, but you can't use LDAC protocol.

View method: Android phone into the developer mode, drop down to view

Function Description:

1. Use csr8675 Bluetooth audio board ,Bluetooth 5.0, supporting aptx, aptx HD, LDAC, using external antenna, better effect

2.The highest sampling rate can support 96k. (LDAC format)

3. USB type-C power supply, simple operation, work after power on!

4. The board has integrated LED indicator light! [led Bluetooth is not connected with slow flash, pairing mode is fast flash, Bluetooth is connected with constant light]

5. Power on and enter the pairing mode automatically. The pairing mode lasts for 3 minutes. After 3 minutes, restart and enter the pairing mode or press the play button for 3 seconds to enter the pairing mode!

Key Description:

Bluetooth mode short press play pause, long press 3 seconds to enter pairing mode

Parameter Description:

1. Bluetooth Name: Bluetooth A107

2. Power supply: USB type-C 5V power supply, current 500 MA

4. Bluetooth distance: 10M

5. Board size: 73 (mm) X80 (mm) [excluding module antenna and structure protruding part]

6. Accessories: 2.4G folding antenna

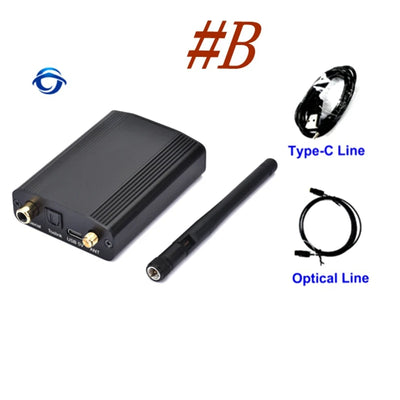

HiFi Bluetooth receiver Bluetooth 5.0 digital interface csr8675 optical fiber aptx HD coaxial LDAC lossless audio
