SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Certification: CE

Certification: RoHS

Smart home platform: none

• Universal Gate Remote Control :This 433 Mhz remote control is designed to be a universal solution for gate control, ensuring easy and convenient access to your property.

• DC 12V 10A Relay Receiver :Equipped with a DC 12V 10A relay receiver, this mini module provides reliable and consistent performance for your gate control needs.

• ROHS Certified :Originating from Mainland China and certified by ROHS, this remote control switch guarantees high-quality standards and safety compliance.

• Versatile Application :Not just for gates, this remote control can also be used for controlling LED garages and other home appliances, offering versatility in its usage.

• Compact Mini Module Design :Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems.

• Long Range Signal :With a strong long-range signal, this remote control ensures effective communication even in challenging environments.

Technical Data

Working Vlots: DC 12V
Input Vlots: 1V~250V
OutputVlots: 1V~250V
Max Current: 10A
Standby Current: <5MA
RF Frequency: 433M
RF working fashion: Superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 50 meters above
Decoding mode: MCU software decoding
Remote storage: 25 PCs
Support remote type: 1527 Learning code, 2262 Fixed code
Working mode: Momentary mode, Toggle mode, Latching mode,Time Delay mode
Battery: No, NC, com

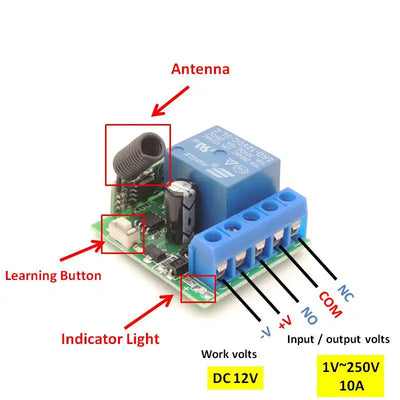

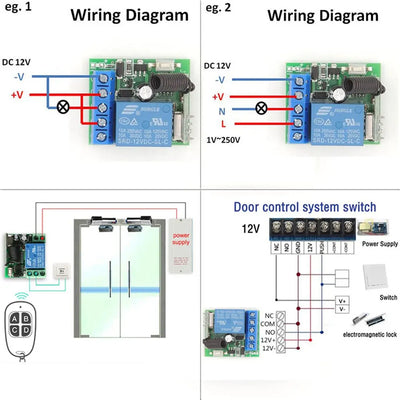

Pin functions:

+V: 12V + input ;

- V: 12V - input ;

NO: normal open;

COM: common ;

NC: normal close;

Operating

433 Mhz Universal Gate Remote Control Switch DC 12V 10A Relay Receiver Mini Module Remote Control for Gate LED Garage Door
