SPECIFICATIONS

Brand Name: haoba

Type: Full Tower

Form Factor: ATX

RGB Support: NO RGB

Case Weight: 5.4

Material: STEEL

Origin: Mainland China

Power Model: ATX

Case Size: L205*W265*H195mm

Model Number: NAS04A

Model: NAS04A

Dimensions: L205*W265*H195mm

Material: 1.0mm Superior SGCC+PC+ABS

Storage Bays: 4* 3.5 /2.5 Hard Disk Bays(Front),1*2.5SSD Bay(Inside)

Backplane: Hotswap function,With 6Gbps SATA Backplane

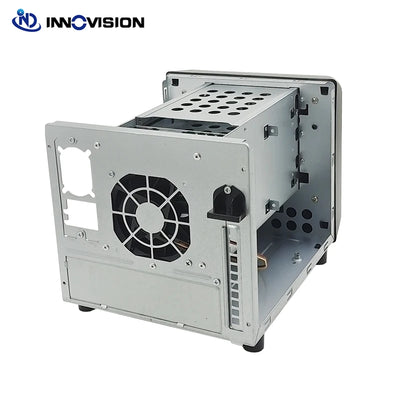

Cooling Fans: 1*8025mm Cooling fan

Main board: Support Mini ITX (The height of the heatsink should be less 30mm)

USB interface: 1*USB 2.0 Ports,1*USB 3.0 Port (Front)

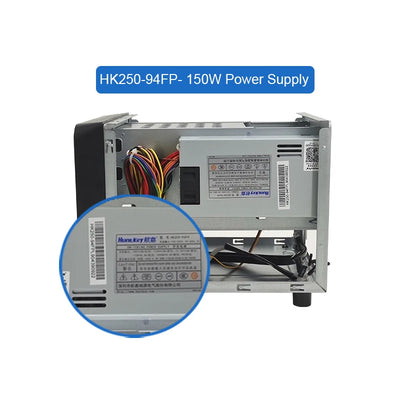

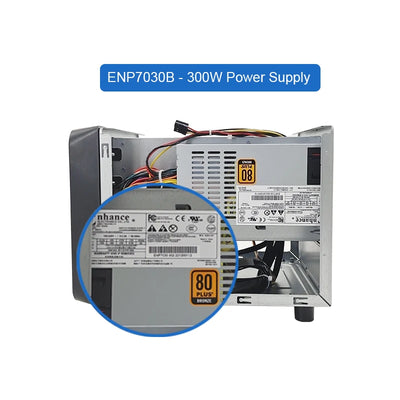

Power Supply: Support 1U Flex / Standard Server Powersupply

Packing method: Carton + EP

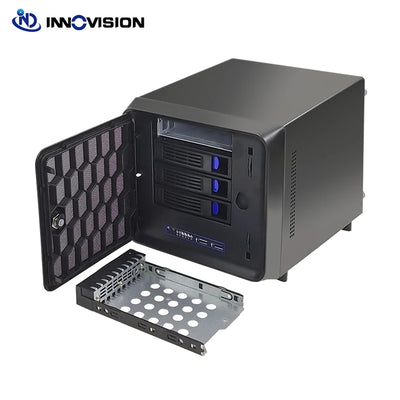

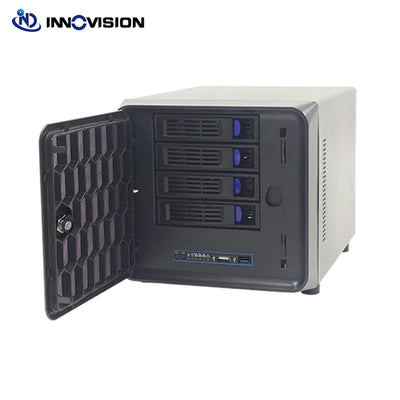

Desktop 4bays hot swapped NAS storage chassis

Product Description

Spotlight Features:

*4x3.5" hot-swappable SATA / SAS drive bays

*Supports 170*170mm Mini-ITX motherboard
*Comes with 1pcs 80mm silent fan
*Support standard 1U / Flex 1U power supply
*With high-quality &Stable 6Gb/s Mini SAS backplane
*Richful Indicating workings status Led and FP controller
*Fashion design & Exquisite workmanship, OEM Available

Model	NAS04A
Dimensions	L205W265H195mm
Material	1.0mm Superior SGCC+PC+ABS
Storage Bays	4* 3.5 "/2.5” Hard Disk Bays(Front),1*2.5”SSD Bay(Inside)
Backplane	Hotswap function,With 6Gbps SATA Backplane

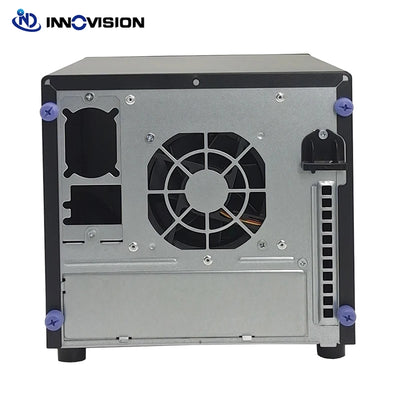

Cooling Fans	1*8025mm Cooling fan
Main board	Support Mini ITX (The height of the heatsink should be less 30mm)
USB interface	1USB 2.0 Ports,1USB 3.0 Port (Front)

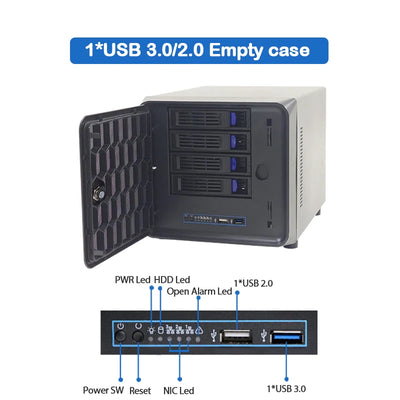

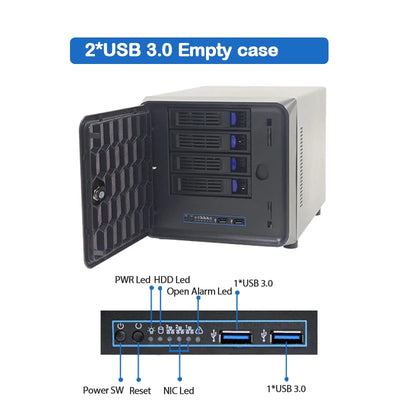

Indicator / Switch	Power SW/Reset SW1,Power/HDD LED1, NIC LED3,Open Alarm LED1

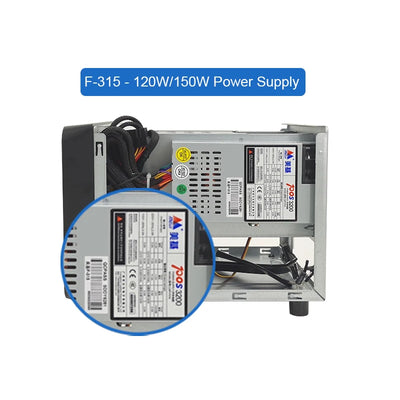

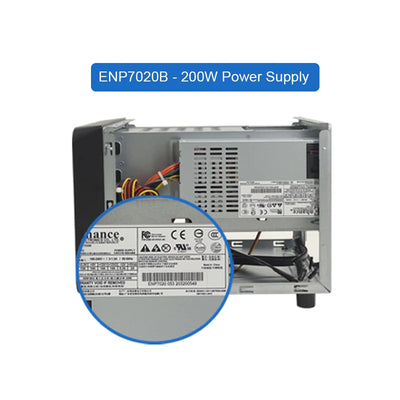

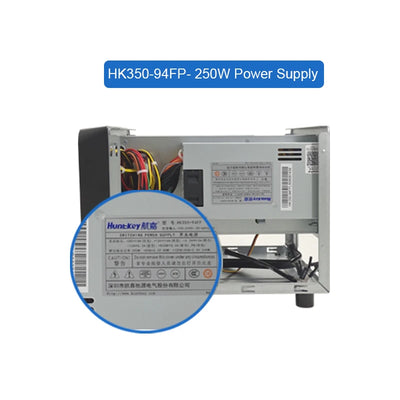

Power Supply	Support 1U Flex / Standard Server Powersupply
Application area	NAS Storage for home/enterprise, Cloud Storage
Packing Info.	Net weight 4.3kg, gross weight 5.00kg
Packing method	Carton + EP
Package size	320mm240mm240mm

2023 New 4 Bays disk NAS case support mini ITX motherboard for home network storage
