SPECIFICATIONS

Brand Name: TOPLOONG

Type: Rack

Form Factor: MicroATX

RGB Support: NO RGB

Case Weight: 8

Material: STEEL

Origin: Mainland China

Power Model: ATX

Case Size: 31*31*22CM

Model Number: NAS chassis

With Side Panel Window: no

Chassis Type: Server

Internal 3.5" Drive Bays: 8

Application: Server

Hot-Swap Drive Bays: 8

140mm Fan Options: 0

120mm Fan Options: 0

Power Supply Mounted: Bottom

With Fan: YES

Max CPU Cooler Height: 65

Front Ports: USB

Expansion Slots: 4

Internal 2.5" Drive Bays: 1

Style: CASE+Fan

With Power Supply: no

2022 new office home storage hot-swap NAS Server chassis IPFS 8HDD bays case USB3.0 support matx motherboard 1U psu cloud computing

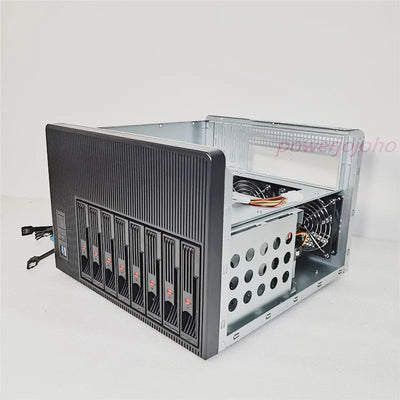

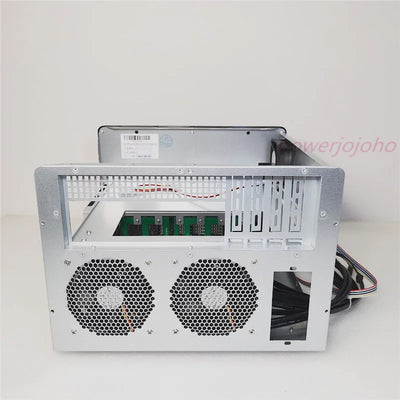

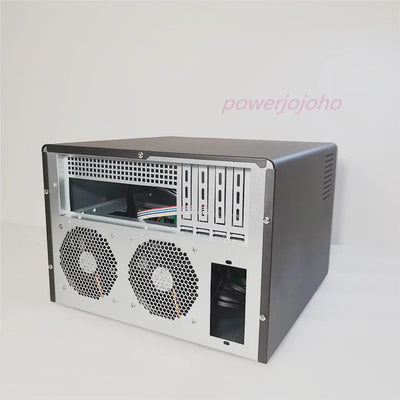

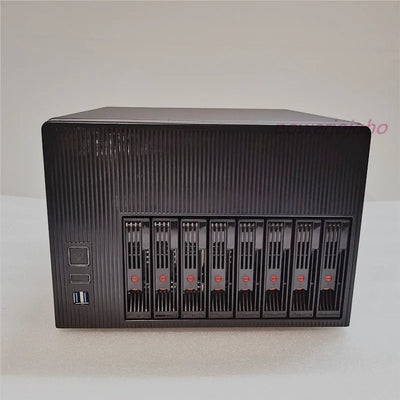

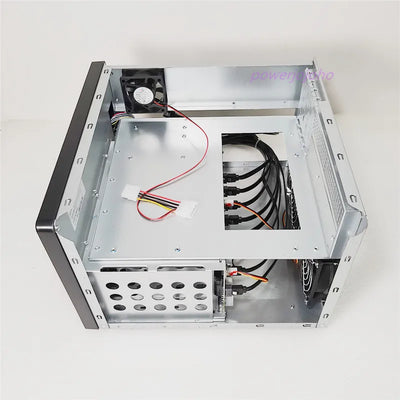

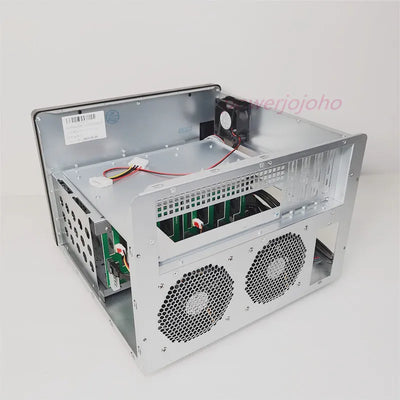

Product name:8bays NAS chassis

Application:widely used in cloud storage, blockchain node, IPFS and other fields

Dimension: 310MM(D)*305MM(W)*220MM(H)（including 10MM Bottom cushion）

Material: Environmental resistant fingerprint 1.0MM SGCC

The HDD backplane:Two 4-bit backplanes, 6GB SATA

PCI expansion:Four half-height PCI or PCIE expansion slots

motherboard size: matx motherboard 9.6’’*9.6’’(244mm*244mm)

Suitable PSU: 1U psu(180-200*100*40.5MM) compatible flex psu(150*80.5*40.5MM)

Maybe need extension cables

Cooling fan:2*9025 fan，1*6025 fan

Drive bays: 8 x 3.5" HDD bays(Compatible with 2.5 "HDD bays)

System control: Power LED,Reset,Power SW,HDD LED

USB ports: 2*USB 3.0 ports

NOTICE:it is just an empty chassis,no motherboard,no psu,no HDD!!!

From March 28, 2022, the product has been upgraded again，

As shown below：

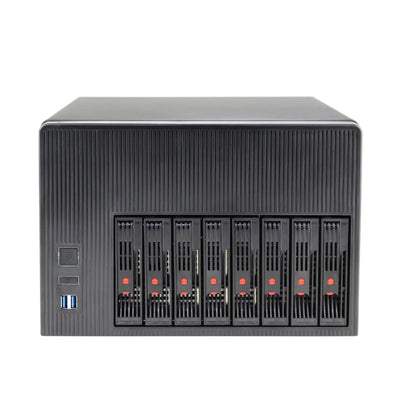

new chassis:

2022 new office home storage hot-swap Server chassis IPFS 8bays NAS case 6GB sata backplane USB3.0 support matx motherboard
